Hifu
Hifu machine uses hifugh intensity focuse ultrasound technology, so that the skin tissue createS the thermal, and make high-speed friction cells to stimulate collagen. Such heat effect will not hurt the epidermis, because the treatment fast and direct access to the treatment site within O-0.5 seconds, without touching the surrounding tissueand can be passed directly to the superficial tendon membrane system(SMAS). The hifu machine can be done firm skin while pulling the muscle layer, thin face up to the progressive effect. What is SMAS? Lift operation at present by plastic surgeons do operation layer, the SMAS layer, which is(superficial musculoaponeurotic system, referred to as the fascia(fascia) SMAS) layer on the skin depth is about 4.5mm, subcutaneous fat and muscle.
Standard: machine with 2 cartridges, if need more cartridges, can buy extra cartridges for body .
The transducer information:
1. Transducer DS-4.5mm, 4MHZ frequency used to transmit high- energy focused ultrasound to the skin,
subcutaneous tissue, the ultrasound to penetrate the skin to a depth of 4.5mm, direct subcutaneous SMAS layer, forming “heat coagulation” regional,
targeted to thicker skin, such as cheeks, etc.
2. Transducer DS-3.0mm, 4MHz frequency ,used to release ultrasound energy into the dermis layer of 3.0mm,
is responsible for activating the skin’s dermal layer of collagen, effectively enhance the effect of the consolidation of the outline,
but also improve large pores and reduce the appearance of wrinkles.
3. Transducer DS-6.0mm,8.0mm,10mm,13mm and 16mm are responsible for transmitting 4 MHZ high intensity focused ultrasound subcutaneous fat layer to melt the fat cells.
Then the metabolites of fat cells will be excreted by human body’s metabolism.It is targeting the body.
Note: DS-6.0mm,8.0mm,10mm,13mm and 16mm transducer is ONLY do for body fat reduction, skin tightening.
Advantages:
1. It uses the latest advanced technology called HIFU, short for high intensity focused ultrasound.
2. It has three different working heads for different operational areas:
-3.0mm is for the dermis layer;
-4.5mm is for the SMAS layer.
-6.0mm/8mm/10mm13mm/16mm for body fat layer
3. It's totally non-invasive and safe.
4. The effect will be shown after the operation, while the best effect will be seen after two months. It can be lasted for 2-3 years..
Vmax Handle:
Micro-Needle Fractional RF
The Micro-Needle Fractional RF System is the ideal technology for skin lifting, tightening and rejuvenation by utilising minimally invasive micro-needles to deliver controlled RF energy directly into various depths of the skin.It has had outstanding success for all skin types with very low risk of side effects and PIH – a key difference when compared to optical based treatments (IPL & Laser).
The depth of penetration of the micro-needles can be adjusted from 0.5 to 3.5mm based on treatment target areas with outstanding end results such as skin lifting, pore-size reduction, tightening and overall rejuvenation.
Parameters:
| Description |
4D Hifu + vmax hifu+microneedle machine |
| Voltage |
110V-130V / 60Hz, 220V-240V / 50Hz |
| Power |
200W |
| Number of Cartridge |
Standard: 3.0mm, 4.5mm |
|
Optional: 1.5mm, 6mm, 8mm, ,10mm,13mm, 16mm
|
| Cartridge shots |
20000 shots
|

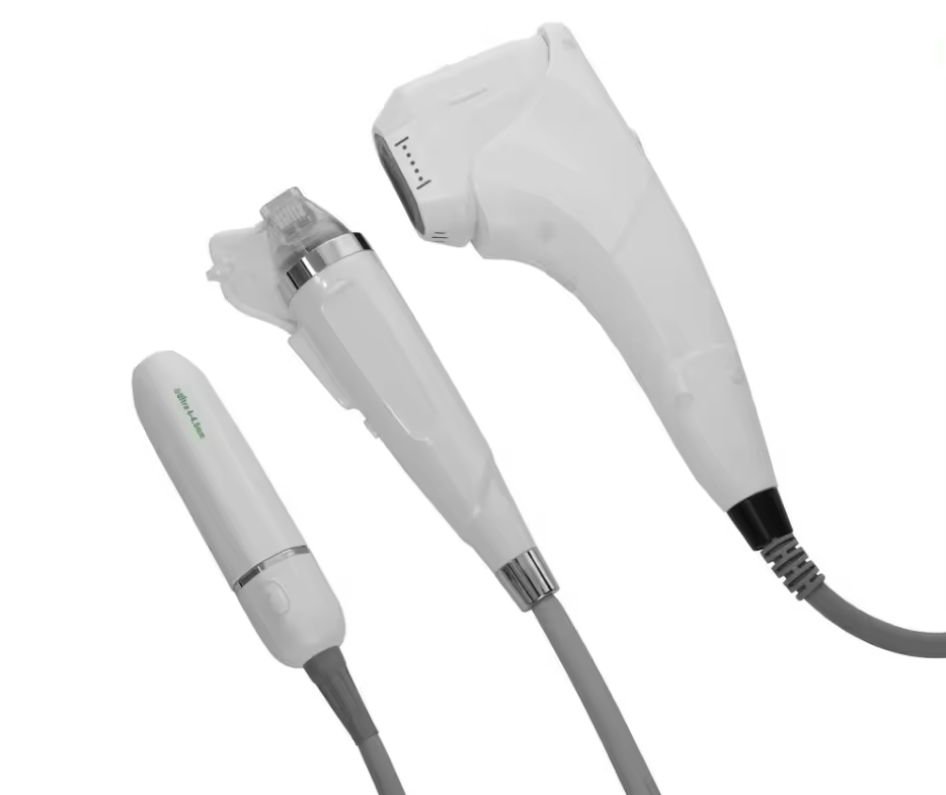

| Working handle |
hifu handle+vmax hifu handle+secret RF microneedle handle
|
| Working mode |
Pulse digital output mode |
| Energy |
0.2J-2.0J (Adjustable: 0.1J/step)) |
| Distance |
1.0-10mm (Adjustable: 0.5mm/step) |
| Length |
5.0-25mm (Adjustable: 1.0mm/step) |
| Frequency |
4MHz |
| Material |
Durable ABS |
| Packing size |
69x49x24cm |
| N.W. |
10kgs |
